KA1GT Troposcatter and Link Budget Calculator



I wrote this program about 20 years ago and I haven't updated it since. It runs under MS DOS (it's not a windows program), and it works fine in a Windows 98/ME/2000/XP/Vista/7 DOS window.

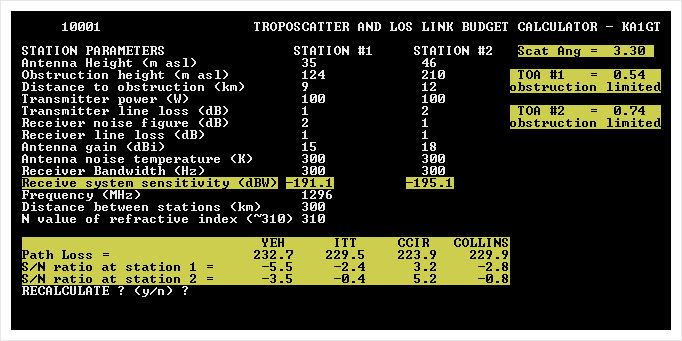

It basically takes a link which you specify and calculates if it's line of sight or not. If it's not line of sight, it uses 4 different methods to estimate troposcatter loss and calculates the S/N ratio at each end of the link. It it is line of sight it uses a simple formula to calculate path loss and S/N ratios.

The software is unsupported shareware. That means you can download it an use it for free, but if you decide to keep using it you can send me a donation if you want to!

I really can't answer too many questions about it since I wrote it so long ago I've forgotten most of the details by now, so it's not supported software. I may work on a more up to date presentation of the data by converting it to Visual Basic, but don't hold your breath for that one. I intend to do it, but I have no schedule.

UPDATE: Finally got around to it. See VB Scatter Program Not only does the new program have a much better interface, it corrects some coding errors and calculates additional parameters. It's much better all round, so there's no reason to use this original scatter program.

An article which discusses all the models on which this program is based appeared in the Winter 1991 issue of "Communications Quarterly" on pages 119 to 127. If you want a copy, email me.

The program contains no viruses or other nasty things, but if you run anyone else's files on your system without at least running them through a virus checker first, you're more of an optimist than I am.

73  Bob
