Canon Powershot SD200 Review

Canon Powershot SD200 Review

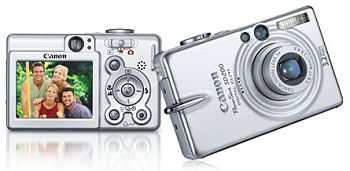

The main distinguishing feature of the Canon SD series of Powershot cameras is that they are small. They followed on from the Canon ELPH film cameras, themselves among the smallest 35mm cameras. However the current SD Powershots, while small in size, are pretty full featured - but I'll get to that later.

How small are they?

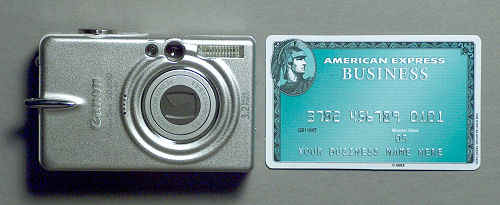

Well, the SD200, SD300, SD400 and SD450 are all about the same size, which is the size (but not thickness...) of a credit card. That means you can follow the instruction "Don't leave Home without it" and not necessarily take your Amex card...

Canon Powershot SD200 Review

Specifically the SD200 and SD300 are 86 x 54 x 21 mm (3.4 x 2.1 x 0.8 in) and the SD400 and SD450 are within 1mm of those dimensions. This means that all these cameras will easily fit in a shirt or pants pocket. Some other Powershots are small (see image below), but you'd have a hard time cramming them into a shirt pocket!

Canon Powershot SD200 Review

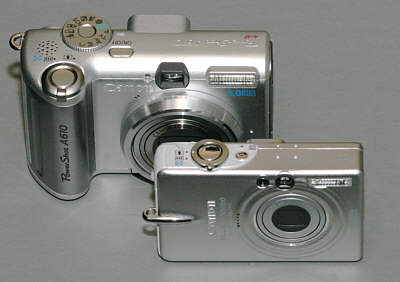

Canon Powershot A610 (rear); Canon Powershot SD200 (front)

They aren't the very smallest cameras around but we're talking differences of a few mm. The Pentax Optio S6 (83 x 52 x 20 mm) is smaller and the Powershot SD20 and SD30 are both 90 x 47 x 19 mm which wider, but shorter and thinner.

What's in the Box?

  • Canon Powershot SD200 camera
  • Li-ion Battery pack NB-4L
  • Battery Charger CB-2LV
  • 16MB SD memory card
  • Wrist strap
  • Software CD
  • USB cable
  • Audio/Video cable
  • Manuals

Note that there is no case included (I'd recommend the PSC-90 case) and the 16MB card is good for only about 8 images at the highest quality, so I'd recommend also getting a larger SD card (at least 128MB, preferably 512MB).

The CD contains the following software:

For Macintosh: ImageBrowser 5.0, PhotoStitch 3.1

For Windows: ZoomBrowser EX 5.0, PhotoRecord 2.1, PhotoStitch 3.1, Camera TWAIN Driver 6.5, Camera WIA Driver 6.3, Apple QuickTime

Features

As I mentioned above, the SD200 is small in size, but not in features, which include:

  • 3.2 Megapixel CCD sensor (2048 x 1536)
  • 3x optical 35-105mm f/2.8-4.9 zoom
  • Optical viewfinder with zoom
  • Digic II processor for faster operation
  • Manual control of flash mode
  • Macro and Infinity focus modes
  • TTL AiAF 9-point autofocus system with focus-assist lamp
  • 2.0" color LCD with 10x playback zoom
  • Exposure compensation: +/-2EV in 1/3-step increments
  • White Balance: Auto, 5 presets or Custom
  • 2.4fps Continuous exposure mode
  • Selectable ISO settings from 50 to 400 plus auto
  • Voice memos (up to 60 secs) can be attached to images
  • Li-ion rechargeable battery and charger
  • Built-in microphone and speaker
  • Shutter speeds of 15 seconds to 1/1500 second
  • Evaluative and Spot metering
  • Movie mode w/sound at 30/15fps and 640x480/320x240 unlimited length
  • High speed movie mode at 60fps (320x240)
  • Tripod socket (aligned with lens)
  • AF assist light for focusing in the dark

Full specifications can be found on the Canon Powershot SD200 specifications page.

Controls

Canon Powershot SD200 Review

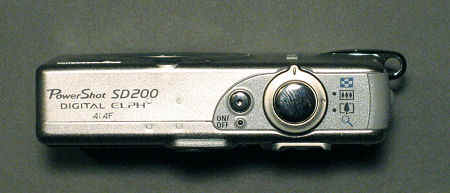

The top of the camera has 3 controls. An on/off button, the shutter release and the zoom control. The zoom control controls the lens in shooting mode and the playback zoom in playback mode.

Canon Powershot SD200 Review

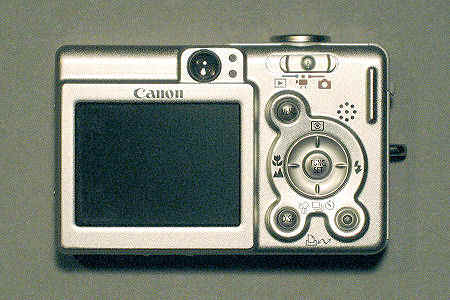

Most of the major controls are on the rear of the camera, along with the 2" color LCD. At the top is a 3-way slide switch which selects playback, movie mode or photo mode. There are 3 push buttons. One (upper left) brings up a menu mode on the LCD. One (lower left) controls the display (LCD on/off and the amount of shooting information displayed). The third button (lower right) is used when printing directly from the camera to a printer. There is also a 4-way rocker switch with a center button. This is used to select and navigate menus, focus modes, metering modes, flash modes and shooting modes.

Exposure

Exposure on the SD200 is automatic. The camera decides the shutter speed and aperture. What's more it doesn't tell you what values it's picked! Luckily, auto exposure is pretty good.If it thinks the shutter speed is low enough that there's risk of camera shake, it flashes an orange light (next to the optical viewfinder).

Canon Powershot SD200 Review

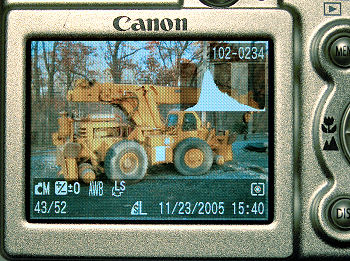

An on-screen histogram is available

While you can't directly set exposure, you can apply up to +/- 2 stops of exposure compensation in 1/3 stop steps, and you do get a histogram display, so you can fine tune exposure if you don't like the results of auto exposure. You can bias exposure towards faster shutter speeds and/or smaller apertures by manually selecting ISO 400, or you can bias it towards longer exposures and/or larger apertures by manually selecting ISO 50. In the so called "manual" mode, these settings are retained when the camera is turned on and off. In "manual" mode you can also set white balance and photo effects such as "sepia", "B&W", "vivid" or "neutral" colors and a "low sharpening" mode. It is also possible to manually select exposure times from 1s to 15s. In auto mode the longest possible exposure is 1s.

Printing

The SD200 (and all Canon Powershot cameras) are capable of direct connection to a compatible printer enabling prints to be made without the use of a PC. With compaticle Canon printers, it's as easy as conecting a cable and pushing a button. See my recent review of the Canon SEPLHY CP-510" printer for more information on direct printing. The SELPHY 510 is small and portable and for $95 would make a good addition to the SD200 as long as you don't want prints larger than 4" x 6".

[NEXT: Part II - Optical Performance and Conclusions]
